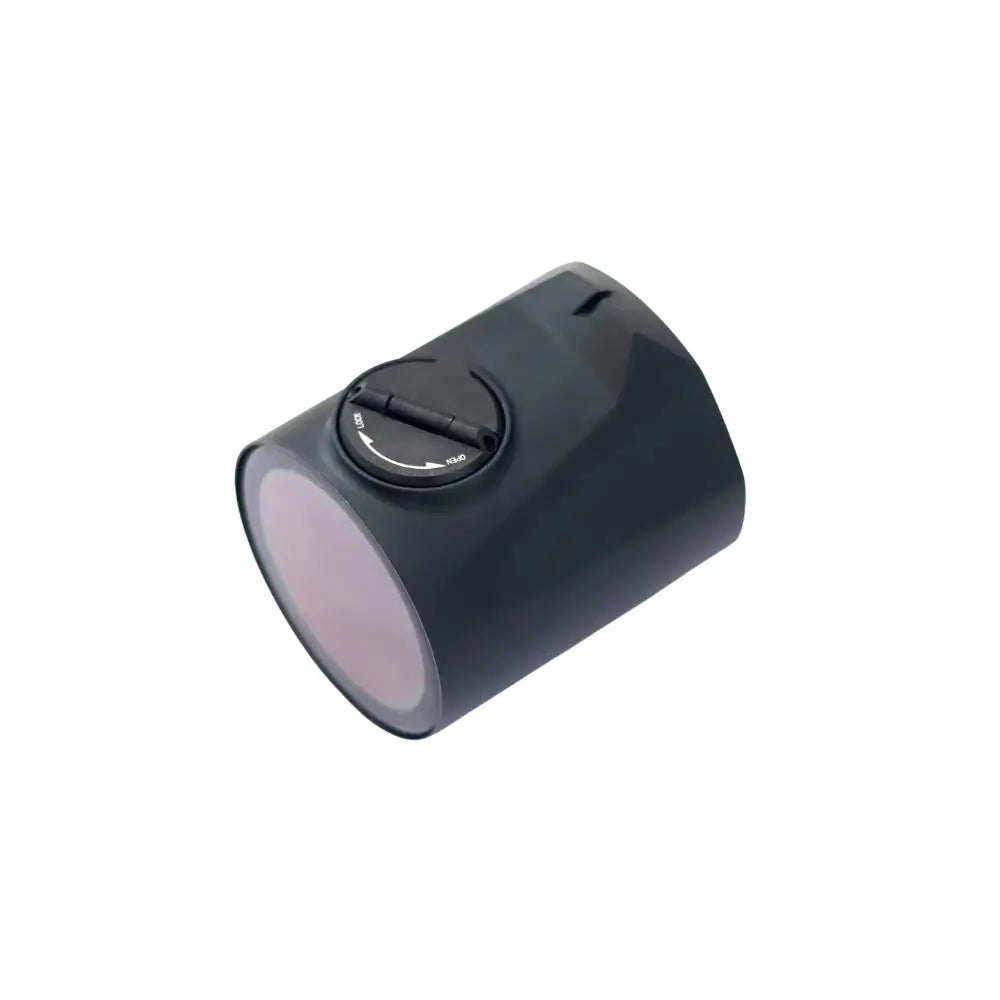

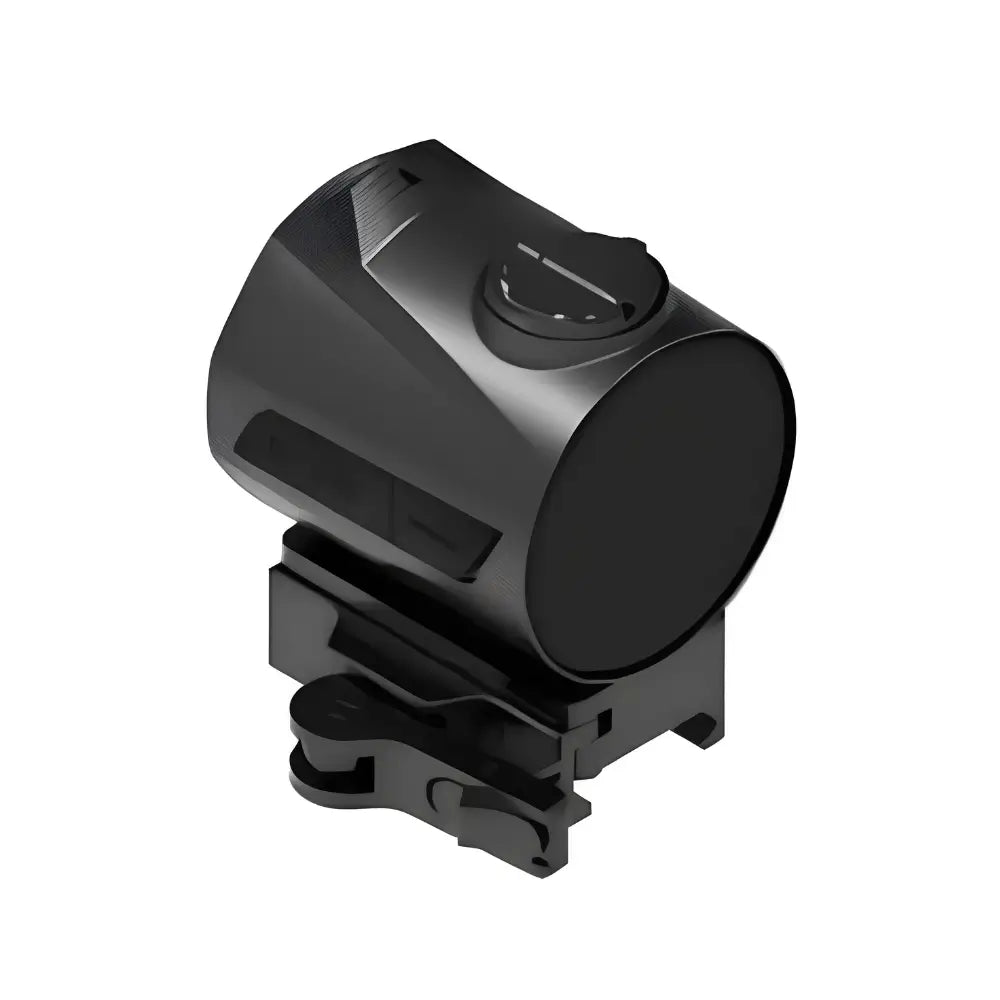

SCOPS OWL Thermal Scope

Experience compact thermal imaging with the MCJ Optics 256×192 Thermal Imaging Scope. Featuring an uncooled focal plane array, 12μm pixel size, 60Hz refresh rate, and a 13mm F0.9 lens, it delivers responsive thermal viewing in a lightweight package.

Compact Thermal Performance

• 256×192 Thermal Resolution: Uncooled detector with 12μm pixel size and 8–14μm spectral response.
• 13mm F0.9 Lens: Provides a 13.5° × 10.1° field of view for broad thermal observation.
• 60Hz Refresh Rate: Supports smooth, responsive thermal imaging.
• Multiple Color Palettes: Choose from Black Hot, White Hot, Iron Red Hot, Red Hot, and Green Hot.
• Built-In Recording: Capture video and photos with 32GB EMMC storage.
• OLED Display: 1.4-inch, 466×466 OLED display with adjustable brightness.
• Lightweight Design: Weighing ≤120g with compact 52 × 48 × 41mm dimensions.
• Rugged Construction: 1000g shock resistance and operation from -20°C to +50°C.

Technical Specifications
