MCJ Optics LODM1 - 10-20x60 Monocular – BAK4 Prism, Multi-Coated, Tripod-Ready
MCJ Optics LODM1 - 10-20x60 Monocular – BAK4 Prism, Multi-Coated, Tripod-Ready
Couldn't load pickup availability

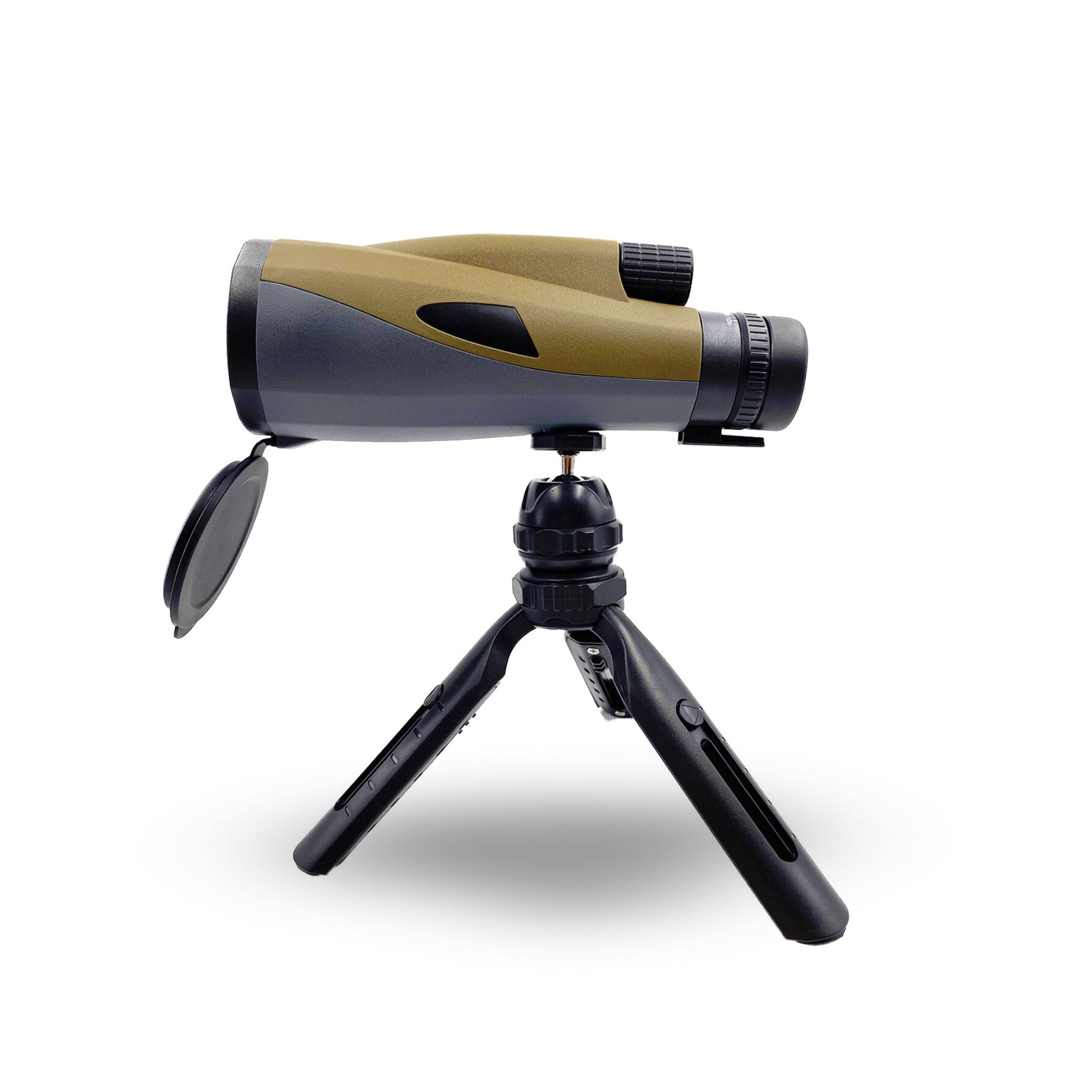

MCJ Optics LODM1 - 10-20x60 Monocular delivers versatile zoom performance in a rugged, tripod-compatible design. Whether you're glassing a distant ridgeline, observing wildlife, or spotting on the range, this monocular provides a wide field of view with crisp detail at every magnification level.
Equipped with BAK4 prisms, multi-coated lenses, and a large 60mm objective lens, it produces bright, high-contrast images. The twist-up eyecup and long 15mm eye relief make it comfortable for prolonged use, even with eyewear.
Water-resistant (IPX2–3), the monocular comes with a hand strap, spotlight-style eyecup, and adjustable tripod — making it ideal for steady, hands-free viewing in field conditions.
Key Features:
- 10x–20x zoom magnification for mid- to long-range observation
- Large 60mm objective lens for excellent light gathering
- BAK4 prisms with prism coating for sharp, true-to-color images
- Multi-coated optics reduce glare and enhance contrast
- Twist-up eyecup and 15mm eye relief for comfort
- Tripod mountable and includes adjustable tripod and hand strap
- Water-resistant IPX2–3 rating suitable for light rain and splashes
Technical Specifications:
| Model | MOF-MO-LODM1020601 |
|---|---|
| Magnification | 10x – 20x |
| Objective Lens Diameter | 60mm |
| Ocular Lens Diameter | 24mm |
| Prism Type / Material | BAK4 |
| Prism Coating | Yes |
| Lens Coating | Multi-Coated |
| Number of Lenses | 7 pcs / 5 groups |
| Exit Pupil Diameter | 4.0mm – 2.8mm |
| Exit Pupil Distance | 15mm |
| Field of View (Angle) | 5.6° – 2.8° |
| Field of View (Linear) | 68 m – 38 m @ 1000 m |
| Minimum Focus Distance | 2.6 meters |
| Eyecup Type | Twist-up |
| Focusing Lens | Objective |
| Waterproof Rating | IPX2 – IPX3 |
| Product Dimensions | 238 × 92 × 135 mm |
| Product Weight | 855g (with hand strap, spotlight eye mask, tripod) |
Field-tested and ready for adventure — backed by MCJ’s trusted Lifetime Warranty.
